Fire barrier block (Soft)
Intumescent fire barrier block for sealing medium-sized openings in cable trays and pipe penetrations.
New AY materials’ fire barrier blocks /firestop pillow is halogen-free, fiber-free, and VOC-free. When exposed to heat, the firestop block expands more than 300%, forming a dense char barrier.
With a fire resistance rating of up to 2 hours
Popular application
Cable tray penetration fire barrier
Cable penetration fire protection

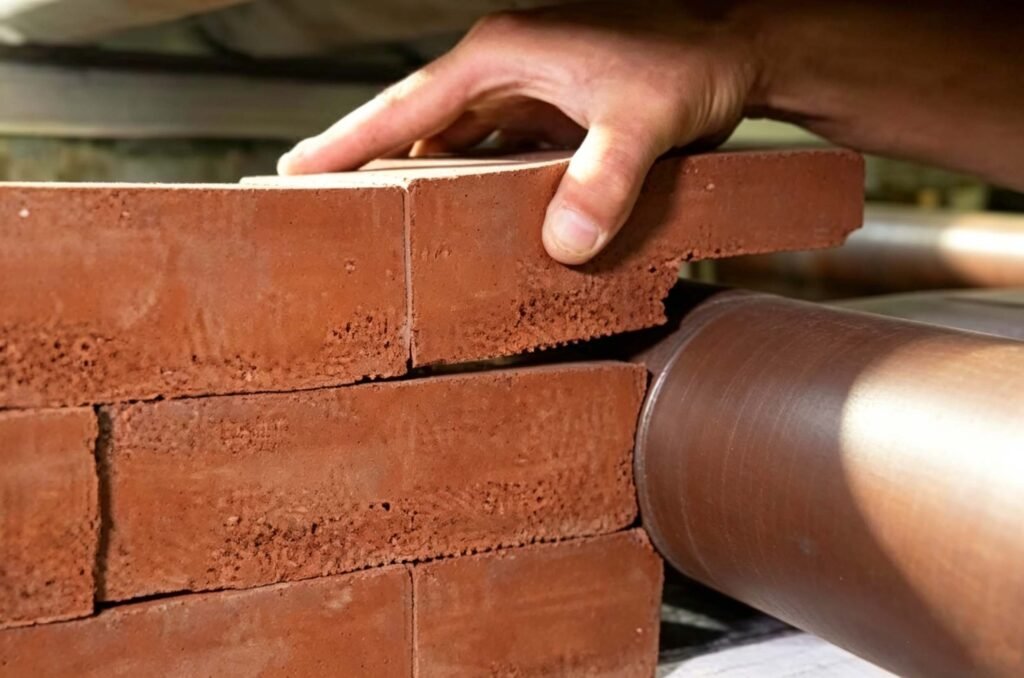

Pipe Penetration Firestop

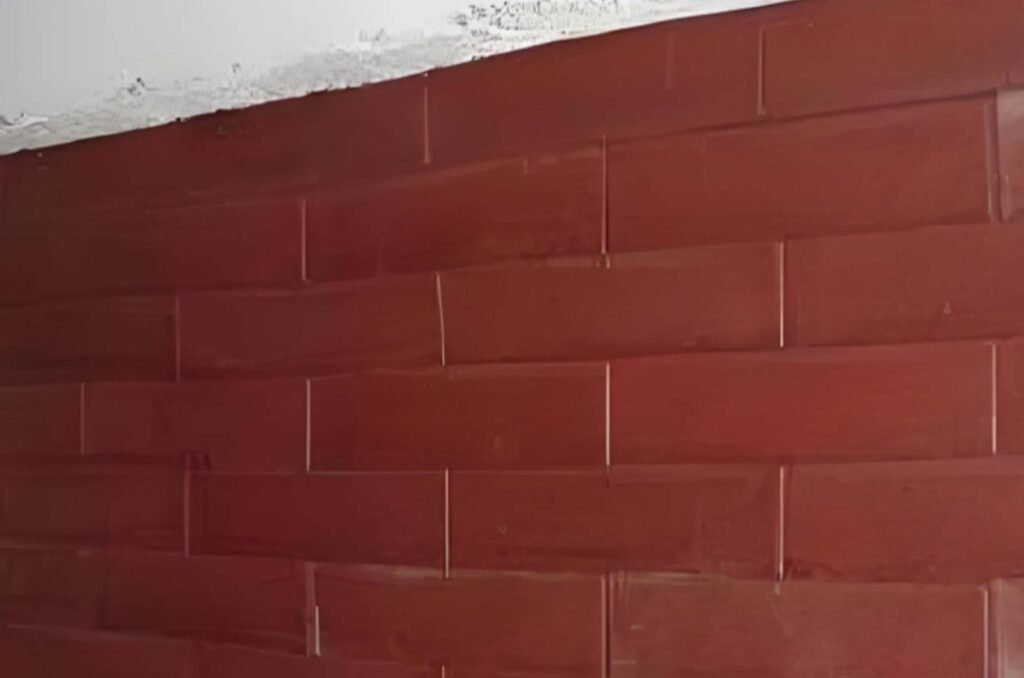

Wall and floor penetration sealing
MEP penetrations sealing
Key Features
- Pre-formed foam unit, easy to install
- Designed for sealing cable trays, pipe penetrations, and mixed service openings in passive fire protection systems.
- Expands more than 300%, forming a dense char barrier that prevents the spread of flames, smoke, and toxic gases
- Fire resistance rating of up to 2 hours
- Re-enterable & Fully reusable
- Halogen-free, fiber-free, and VOC-free, ensuring a safer and more environmentally friendly solution
Valid for 30 Years
Easy to trim
No dust
No Toxic
Applications
- Cable Fire Protection

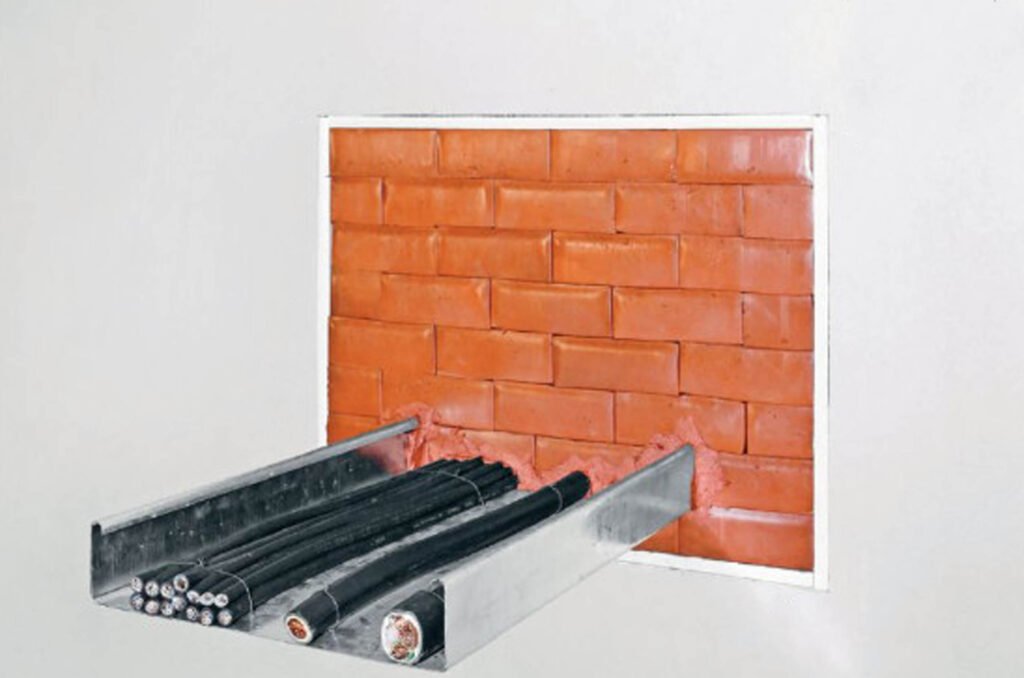

- Fire barrier block for cable trays and cable bundles
- Firestop sealing in data centers and telecom rooms
- Pipe Penetration Firestop

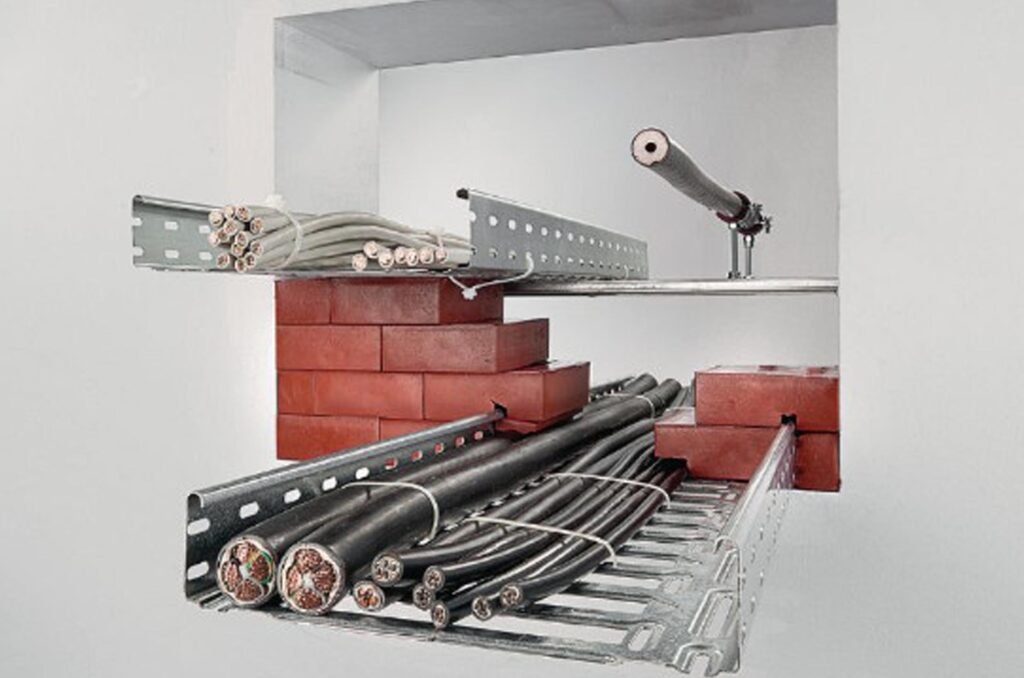

- Mixed Penetrations
Data Sheet
Product Name
Fire Stop Barrier
Color
Dark Red
Material
Two-component polymer
Flame resistant class
V-0 Class
Fire resistance
Up to 2hours
Density
180-200kg/m3
Expansion rate (%)
>300
Dimension
Can be customized
Form
Flexible, semi-rigid
Pressure resistance
100KPa
Water resistance
Yes
Acid resistance
Yes
Alkali resistance
Yes
Oil resistance
Yes
Damp heat resistance
Yes
Corrosion resistance
Yes
Durability
30Years
FAQ
What is the difference between NEW AY's Fire barrier blocks and traditional firestop pillows (fire barrier wraps)?
Better compressive strength and longer service life.
• Traditional firestop pillows use internal fillers (such as expanded vermiculite or mineral wool). Over time, gravity causes these materials to settle, leaving the upper part of the bag empty and compromising the seal. Their water resistance, oil resistance, and corrosion resistance are generally poor, making them more prone to failure in humid environments. Their typical service life is only about 3 years.
• In contrast, NEW AY’s Fire barrier blocks can last up to 30 years.
• The compressive strength of traditional firestop pillows is low (approx. 0.05 MPa), while NEW AY’s Fire barrier blocks can reach 100 kPa.
What is the fire resistance principle of firestop barrier blocks?
Upon exposure to fire, the blocks expand and char to form a dense barrier that blocks flames and cuts off oxygen. The thickness of the char layer increases by up to 300%.
What customized options does the company offer?
• Dimensions (size)
• Shape — including interlocking (male-female) self-locking structures that require no firestop sealant during installation
• Fire resistance rating (duration) — achieved by adding special materials
What are the acceptance testing standards?
• Sealing (water tightness): No leakage after a 24-hour hydrostatic pressure test (per ASTM D570 standard).
• Flame resistance: Char length ≤ 10 cm in an alcohol lamp flame test.
Are Firestop barrier blocks reusable?
Yes. They support cutting and drilling. When the penetration seal location needs to be changed, the blocks can be directly disassembled and reassembled, reducing rework and lowering replacement costs.
